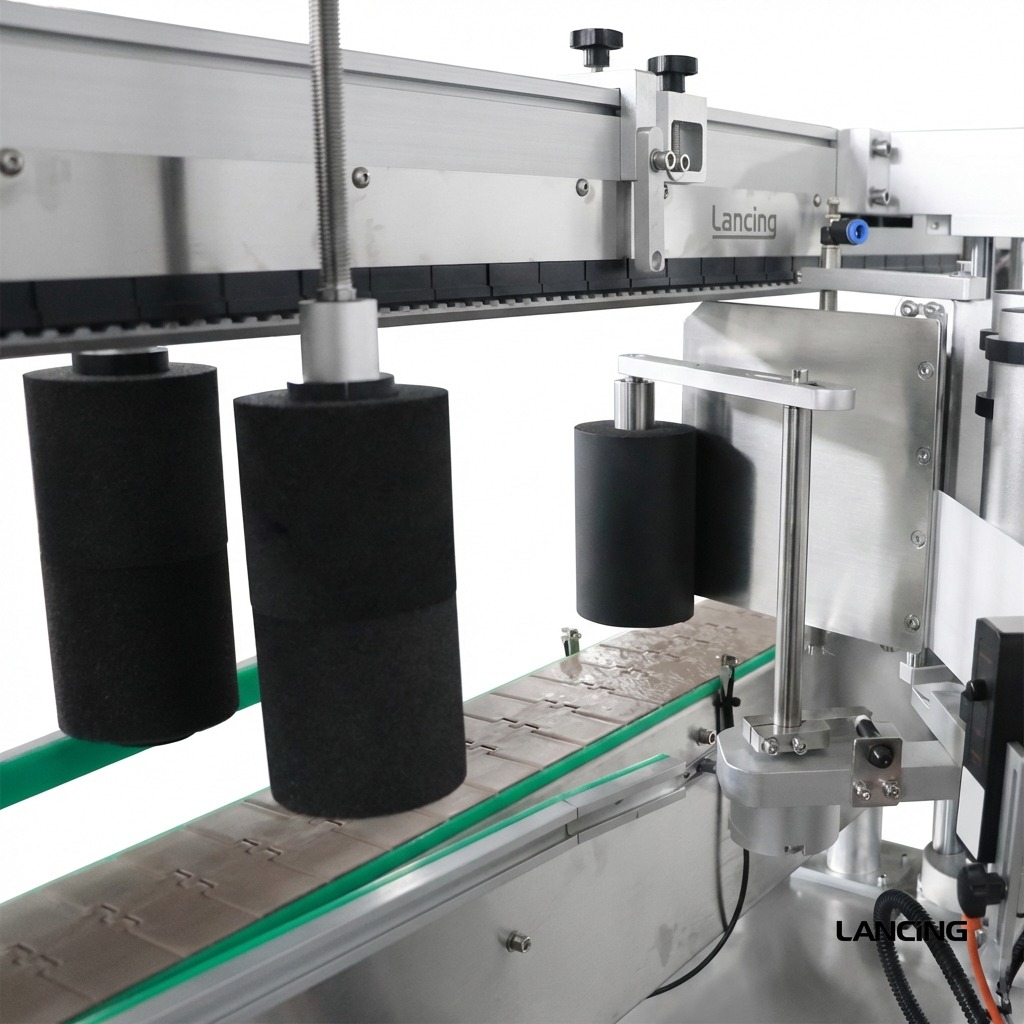

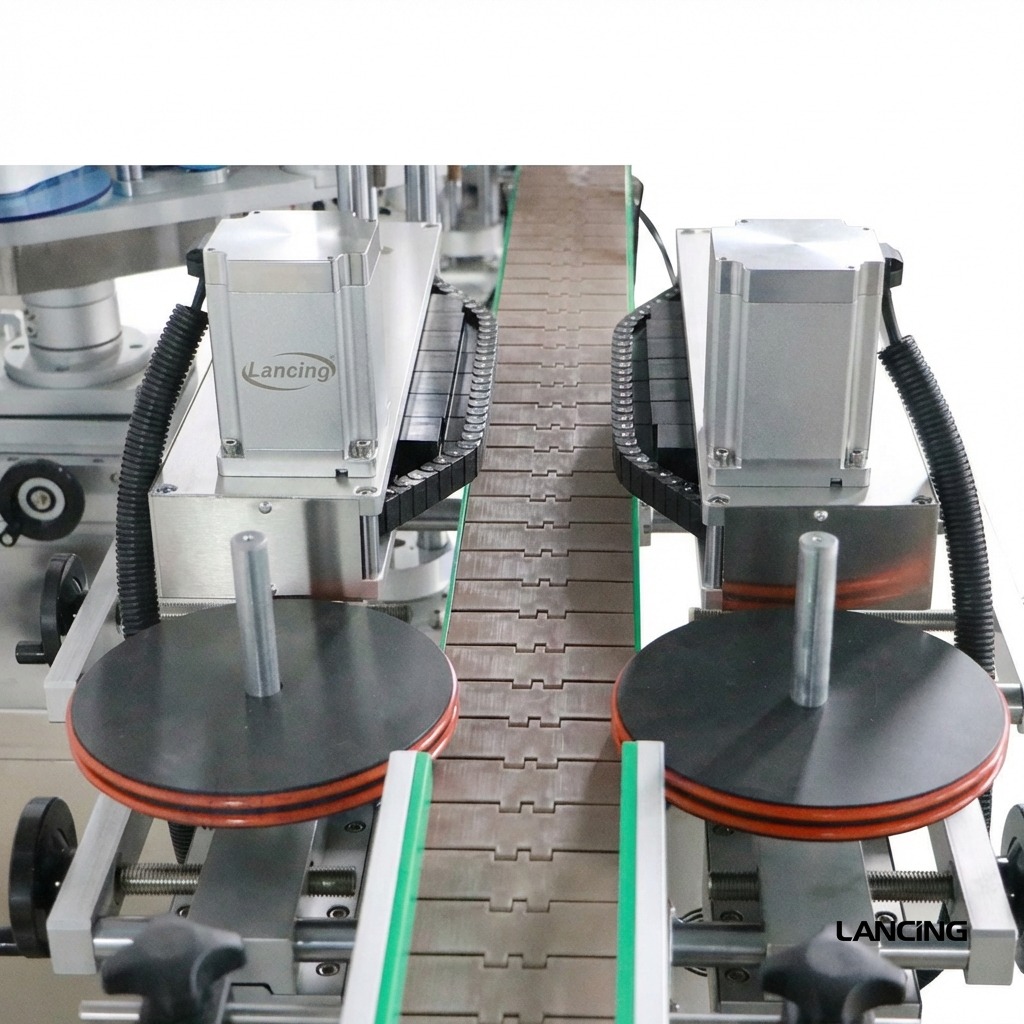

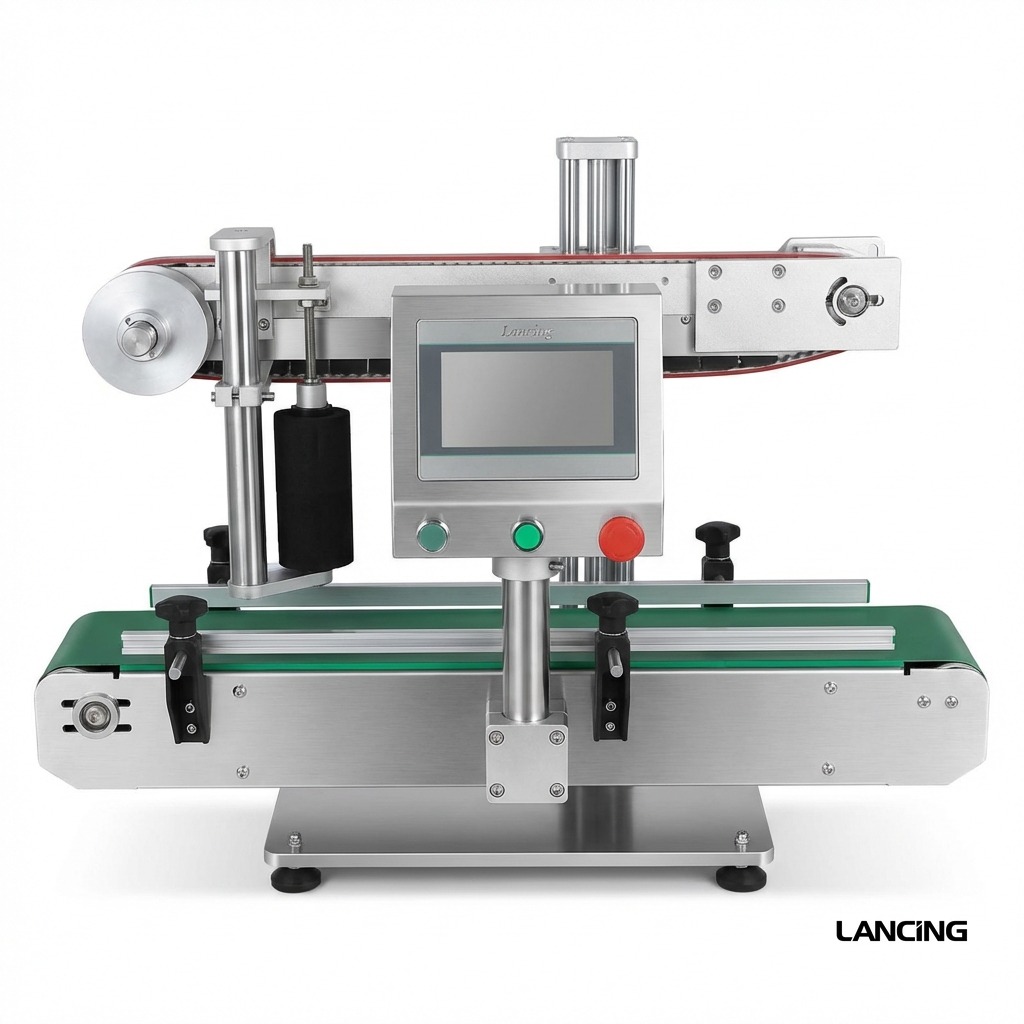

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|
| Model |
LU-TB501 |
| Voltage |
110V / 220V, 50–60Hz |
| Label Width |
20–120 mm |
| Label Height |
15–160 mm |
| Suitable Bottle Size |
– Length: 20–100 mm – Width: 30–100 mm – Height: 60–280 mm (customizable) |
| Standard Roll Diameter |
– Outer: Φ300 mm – Inner: Φ76 mm |
| Labeling Accuracy |
±1.0 mm |
| Labeling Speed |
20–60 bottles/min |
| Machine Dimensions |
Approx. 3120 × 1200 × 1650 mm (L × W × H) |
| Machine Weight |
Approx. 300 kg |
| Packaging Dimensions |
Approx. 3240 × 1350 × 1740 mm (L × W × H) |
| Package Weight |
Approx. 601 kg |
CAD / dimensions
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Site requirements
- Voltage: 110V / 220V, 50–60Hz
- Footprint / size: – Length: 20–100 mm – Width: 30–100 mm – Height: 60–280 mm (customizable)
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.
Quick answers
Key answers buyers and engineers often need before shortlisting this machine.
What is Square Bottle Double Corner Labeling Machine used for?
The corner wrap labeling machine is designed for applying self-adhesive labels to two adjacent sides of square bottles—typically the front and side—ensuring a clean, secure, and professional label application. It integrates seamlessly with filling and capping machines to support a fully automated production line.This machine is ideal for labeling square or rectangular bottles used for engine oil, nutritional supplements, olive oil, beverages, perfumes, and other liquid products
What output can Square Bottle Double Corner Labeling Machine achieve?
This page lists output at 20–60 bottles/min. Actual throughput depends on the product, pack format, changeover requirements and the overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110V / 220V, 50–60Hz; Machine size: Approx. 3120 × 1200 × 1650 mm (L × W × H); Footprint / size: – Length: 20–100 mm – Width: 30–100 mm – Height: 60–280 mm (customizable)
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Project planning notes
Labelling performance depends heavily on container presentation, spacing, label format and the visual standard expected from the finished pack. That means the most useful shortlist usually considers upstream handling, changeovers and coder integration as part of the same conversation.
- Confirm the pack shape, label position and the visual tolerance that matters commercially.
- Check how packs arrive to the labeller and whether spacing or orientation needs support.
- Plan for label changes, SKUs and any print or code requirement at the same stage.
Budget, timing and quote planning
Useful commercial checks before you shortlist or request a final quotation.
Shortlisting square bottle double corner labeling machine is usually about more than the base machine price. Buyers normally need to confirm container presentation, label format, coder needs and changeover range, then check how that scope fits the wider line, labour model and growth plan.
This page currently highlights throughput as 20–60 bottles/min and utilities as 110V / 220V, 50–60Hz. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.
- Confirm the exact product and pack format the quote is based on.
- Check output assumptions, changeover expectations and operator involvement.
- List any utilities, footprint, guarding or line-interface constraints on site.
- Confirm whether FAT, delivery, commissioning, training or spares support are included.
