Pro Range

LU-CYGDP6 Automatic Round Bottle Label Applicator

Ready to discuss LU-CYGDP6 Automatic Round Bottle Label Applicator? Tell us your product, pack size and output target and we will help you shortlist the right configuration.

Machine overview

Key information to help you specify the right configuration.

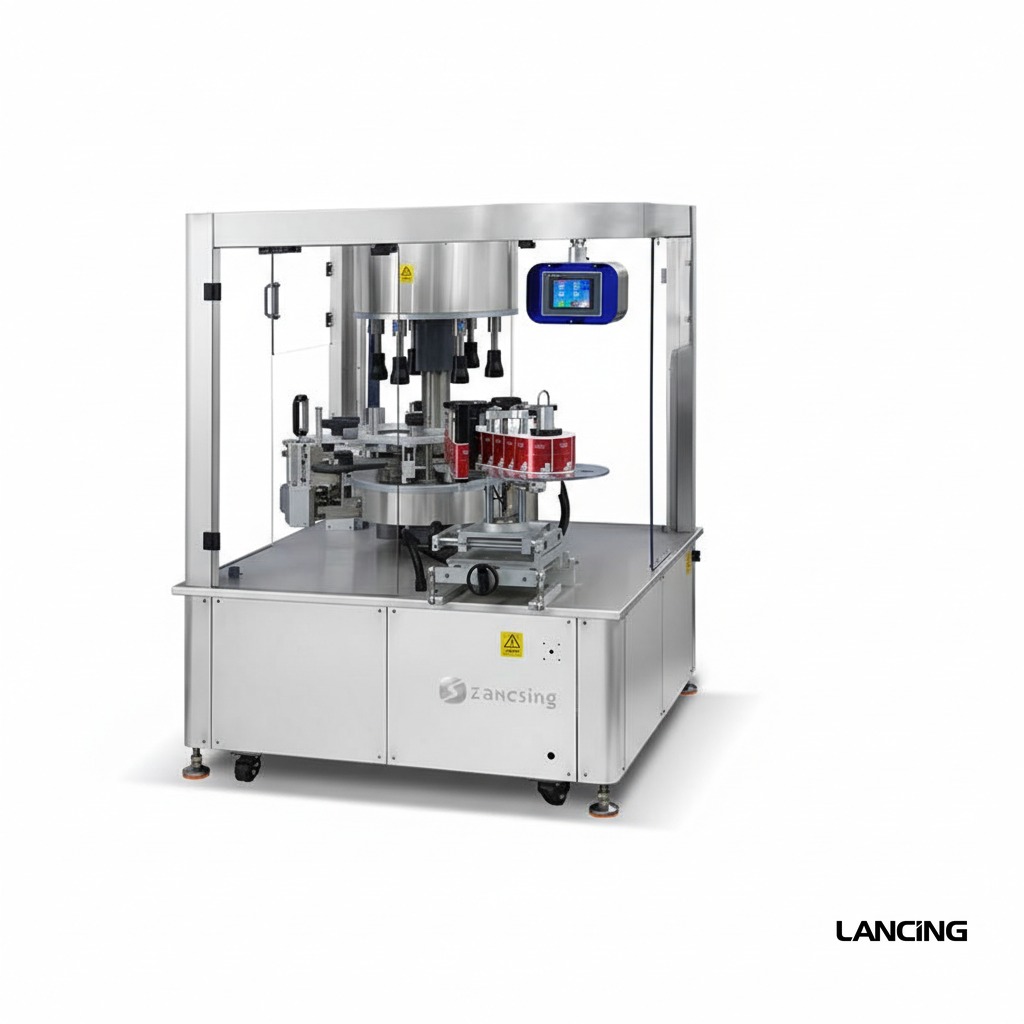

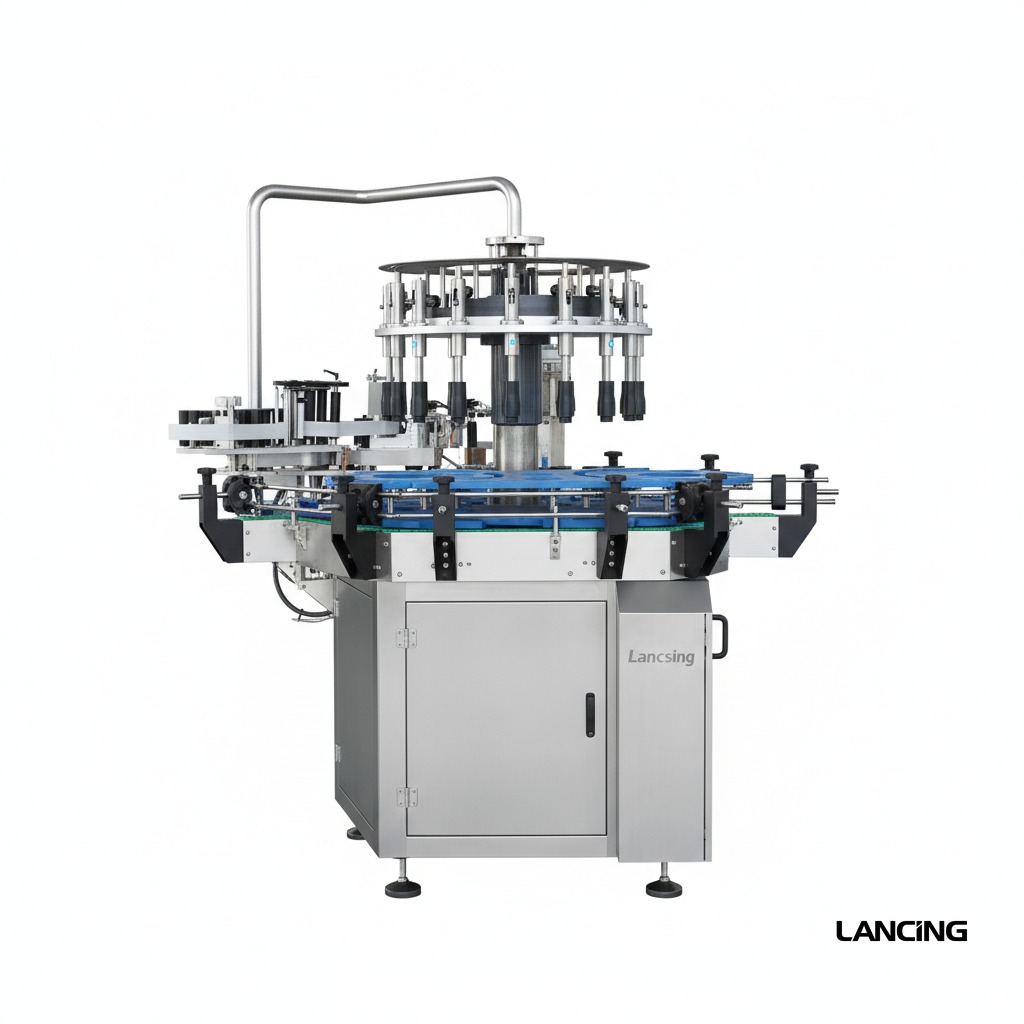

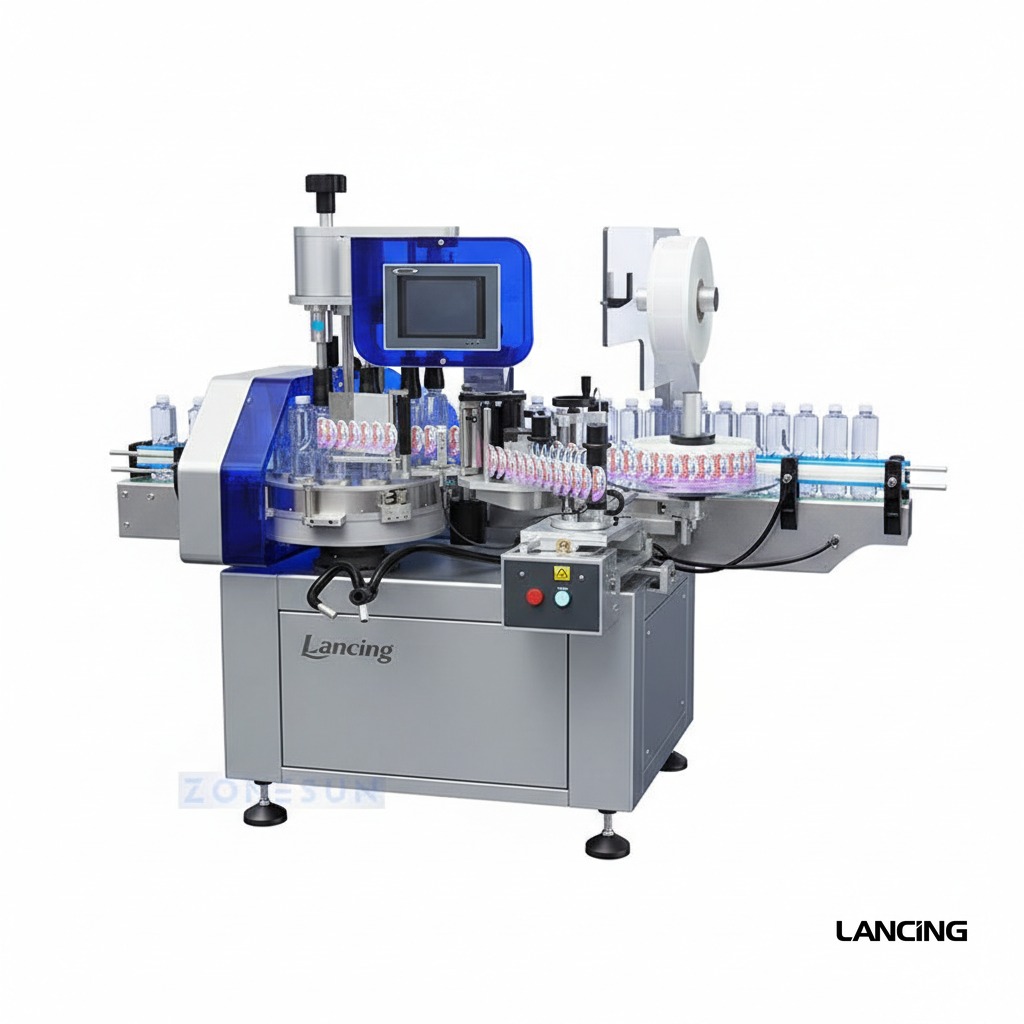

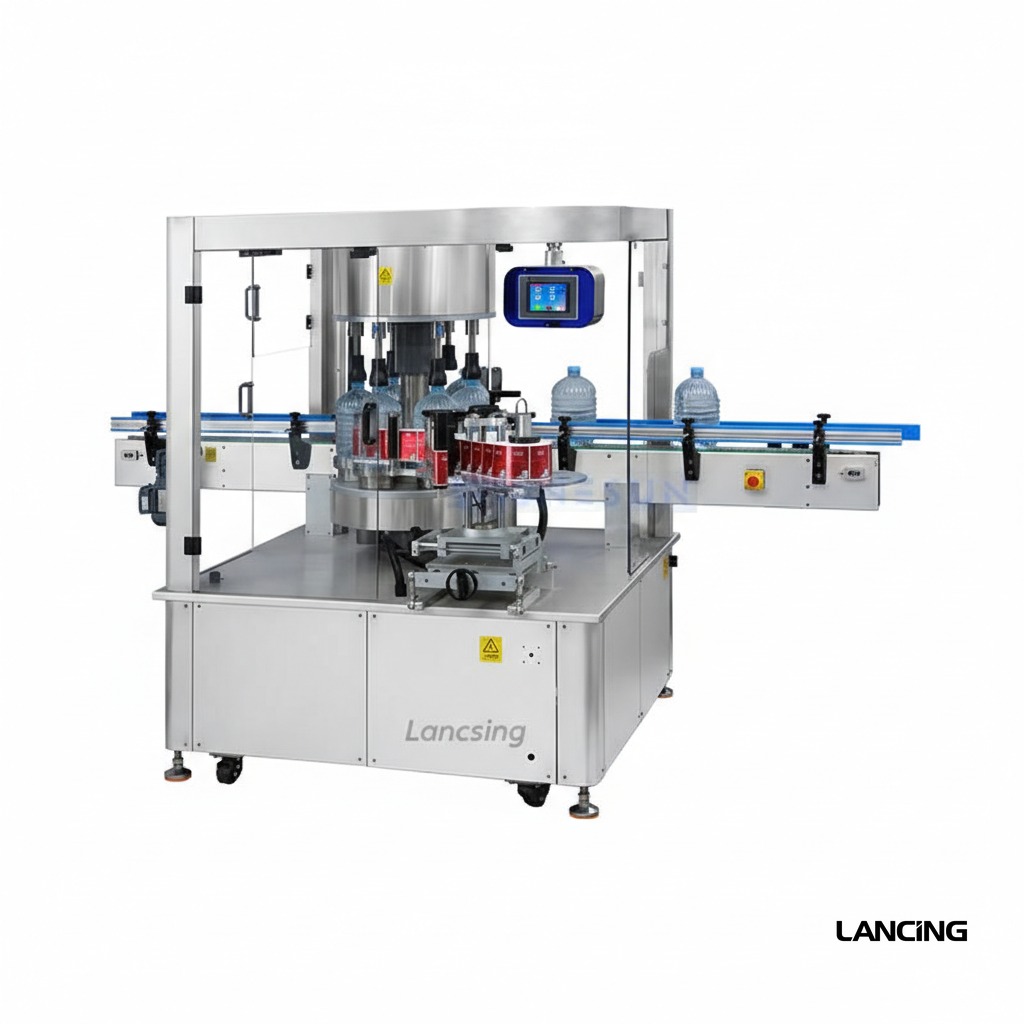

LU-CYGDP6 Automatic Round Bottle Label Applicator preview
This automatic labeling machine is a type of industrial machinery used to apply self-adhesive labels to a variety of cylindrical containers such as plastic bottles, glass bottles, and metal cans. This series of labeling machines is versatile and can be used for both single side and double side labeling of self-adhesive material labels. The machine works by automatically feeding the containers through a conveyor belt system, where they are positioned for labeling. The self-adhesive labels are then accurately applied to the containers, either on one side or both sides, depending on the requirements. These machines are designed to be efficient and reliable, with high accuracy and speed. They are widely used in industries such as food and beverage, pharmaceuticals, cosmetics, and more. With the ability to handle a wide range of container sizes and shapes, they offer a flexible solution for labeling needs. Whatever your packaging needs are, you can rely on Lancing UK.
Throughput
15,000–18,000 bottles/hour
Throughput depends on product, format and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
Configured to your bottle, closure and fill volume.
Utilities
3-phase 380V, 50Hz, 12kW
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Model LU-CYGDP6
Power Supply 3-phase 380V, 50Hz, 12kW
Air Supply ≥ 0.6 kg/cm²
Working Speed 15,000–18,000 bottles/hour
Conveyor Speed 0–30min, can be adjusted freely
Labeling Accuracy ±1mm
Required Size of Labels Max Width: 200mm / Max Length: 280mm
Required Size of Label Rolls Inner Diameter: 76mm / Outer Diameter: < 400mm
Applicable Bottles Max Diameter: 130mm / Height: 120–400mm
Gluing Temperature 120–160°C
Machine Size (L)3300mm × (W)1400mm × (H)2140mm
Machine Weight Approx. 2,500KG

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Power: 3-phase 380V, 50Hz, 12kW
  • Footprint / size: Max Width: 200mm / Max Length: 280mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Key answers buyers and engineers often need before shortlisting this machine.

What is LU-CYGDP6 Automatic Round Bottle Label Applicator used for?

This automatic labeling machine is a type of industrial machinery used to apply self-adhesive labels to a variety of cylindrical containers such as plastic bottles, glass bottles, and metal cans. This series of labeling machines is versatile and can be used for both single side and double side labeling of self-adhesive material labels

What output can LU-CYGDP6 Automatic Round Bottle Label Applicator achieve?

This page lists output at 15,000–18,000 bottles/hour. Actual throughput depends on the product, pack format, changeover requirements and the overall line setup.

What utilities or site requirements should I plan for?

Voltage: 3-phase 380V, 50Hz, 12kW; Machine size: (L)3300mm × (W)1400mm × (H)2140mm; Footprint / size: Max Width: 200mm / Max Length: 280mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.

Talk to a specialist

We’ll confirm suitability, options, integration, and realistic throughput for your product.

Call: 01494 623015 Arrange a demonstration

Project planning notes

Labelling performance depends heavily on container presentation, spacing, label format and the visual standard expected from the finished pack. That means the most useful shortlist usually considers upstream handling, changeovers and coder integration as part of the same conversation.

  • Confirm the pack shape, label position and the visual tolerance that matters commercially.
  • Check how packs arrive to the labeller and whether spacing or orientation needs support.
  • Plan for label changes, SKUs and any print or code requirement at the same stage.

Budget, timing and quote planning

Useful commercial checks before you shortlist or request a final quotation.

Shortlisting lu-cygdp6 automatic round bottle label applicator is usually about more than the base machine price. Buyers normally need to confirm container presentation, label format, coder needs and changeover range, then check how that scope fits the wider line, labour model and growth plan.

This page currently highlights throughput as 15,000–18,000 bottles/hour and utilities as 3-phase 380V, 50Hz, 12kW. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.

  • Confirm the exact product and pack format the quote is based on.
  • Check output assumptions, changeover expectations and operator involvement.
  • List any utilities, footprint, guarding or line-interface constraints on site.
  • Confirm whether FAT, delivery, commissioning, training or spares support are included.
