Key information to help you specify the right configuration.
Auto‑scrolling. Hover to pause.
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-BF750 |
| Power supply voltage | 220V 50-60Hz |
| Air pressure | 0.5Mpa |
| Power | 2.26Kw |
| Packaging speed | 15–30 bag/min |
| Cutter Size | 870mm × 770 |
| Maximum Package Size | W+H ≤ 700mm, L+H ≤ 800mm, H ≤ 150mm |
| Conveyor Belt Width | 600mm |
| Applicable shrink film | POF/PE |
| Film shrinkage ratio | 60% |
| Table height | 780mm (adjustable) |
| Overall dimensions (L × W × H) | 2350 × 1350 × 1630mm |
| Machine weight | 440kg |
| Conveyor Loading Weight | 15–20kg |
| Voltage | 380V 50/60Hz |
| Carrying capacity | 40kg max |
| Furnace Road Size (mm) | 1800 × 750 × 400mm |
| Outline dimension (mm) | 2100 × 1010 × 1470mm |
| Transporting velocity | 0–15m/min |
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Key answers buyers and engineers often need before shortlisting this machine.

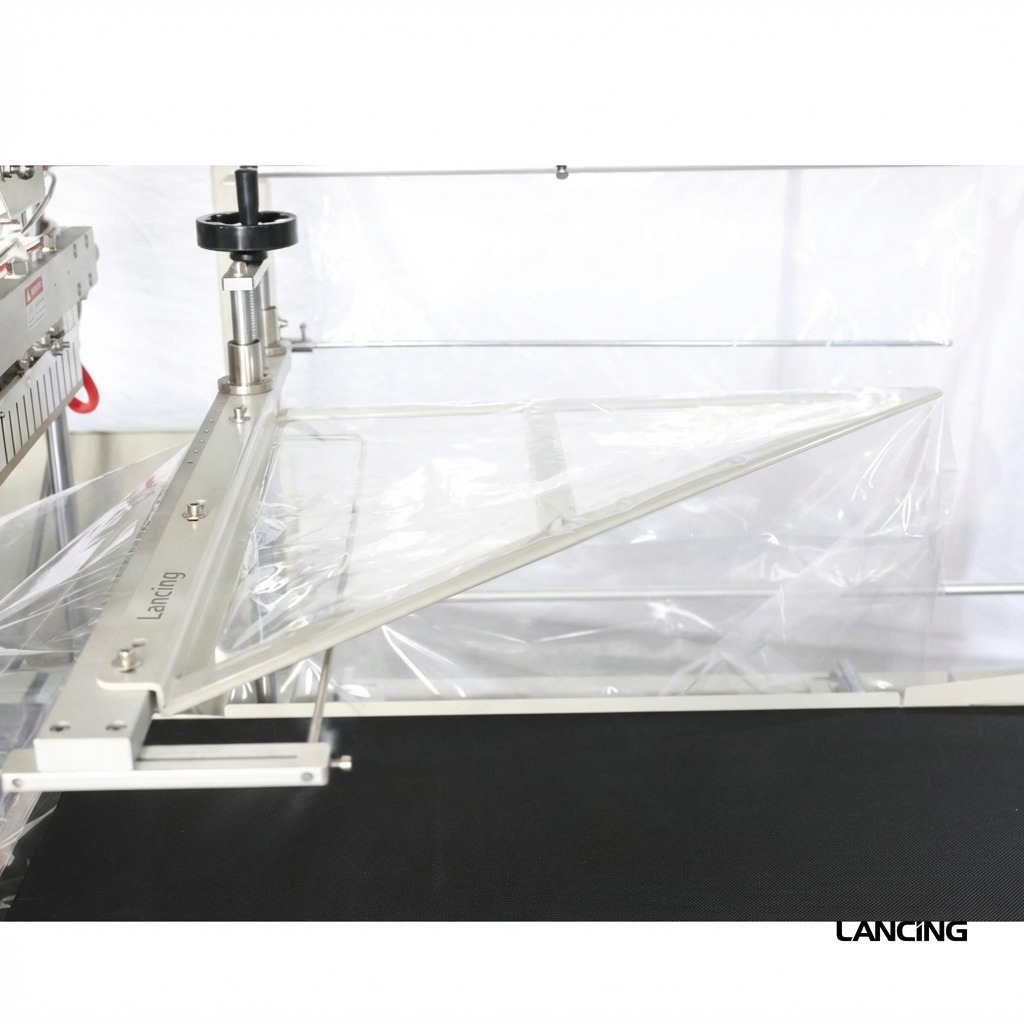

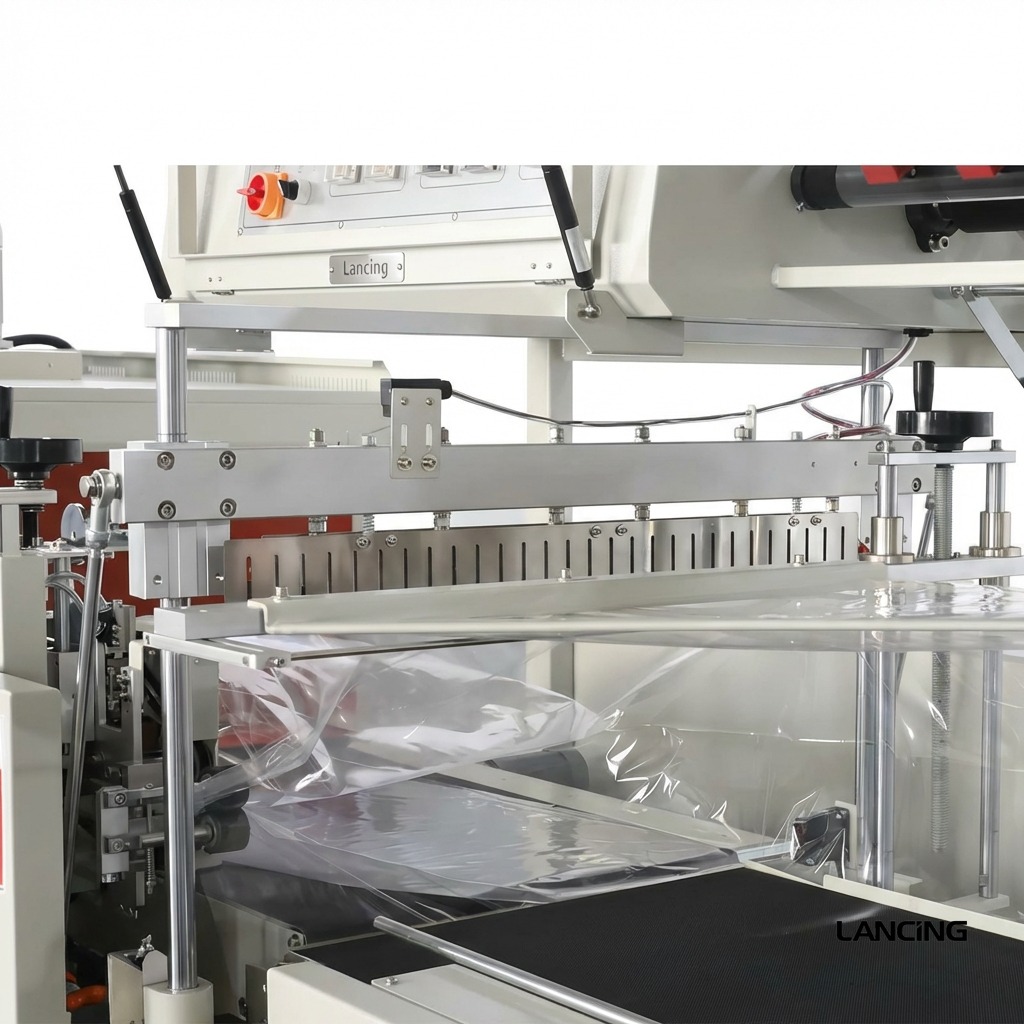

This automatic shrink wrap machine combines a side sealing system and heat shrink tunnel into one efficient unit. It automatically feeds POF, PE, or PVC shrink film , performs precise side sealing, and delivers a clean, tight package through the shrink tunnel
This page lists output at 15–30 bag/min. Actual throughput depends on the product, pack format, changeover requirements and the overall line setup.
Voltage: 220V 50-60Hz; Power: 2.26Kw; Air pressure: 0.5Mpa; Machine size: W+H ≤ 700mm, L+H ≤ 800mm, H ≤ 150mm
Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Shrinkwrapping routes depend on product grouping, film choice, heat application and how the finished pack is handled after wrapping. The shortlist is strongest when the wrapping stage is planned in the context of the grouped pack, film specification and downstream handling.
Useful commercial checks before you shortlist or request a final quotation.
Shortlisting lu-spl6 automatic heat shrink tunnel shrinking wrapping machine is usually about more than the base machine price. Buyers normally need to confirm pack presentation, sealing method, film specification and line layout, then check how that scope fits the wider line, labour model and growth plan.
This page currently highlights throughput as 15–30 bag/min and utilities as 220V 50-60Hz. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
