Key information to help you specify the right configuration.
Auto‑scrolling. Hover to pause.
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Voltage | 220V, 50–60Hz |
| Power Consumption | 2 kW |
| Packing Speed | 0–6 packs per minute |
| Bottle Size Range Diameter | 60–120 mm |
| Height | 100–330 mm |
| Max Package Size | 400 × 120 × 330 mm |
| Min Package Size | 240 × 120 × 100 mm |
| Payload Capacity | Up to 20 kg |
| Film Roll Width | Max 560 mm |
| Film Thickness | 0.03–0.25 mm |
| Applicable Film Type | PE shrink film only |
| Machine Dimensions Approx. | 2150 × 1200 × 2020 mm |
| Machine Weight Approx. | 350 kg |
| Model | LU-BSPN6040 |

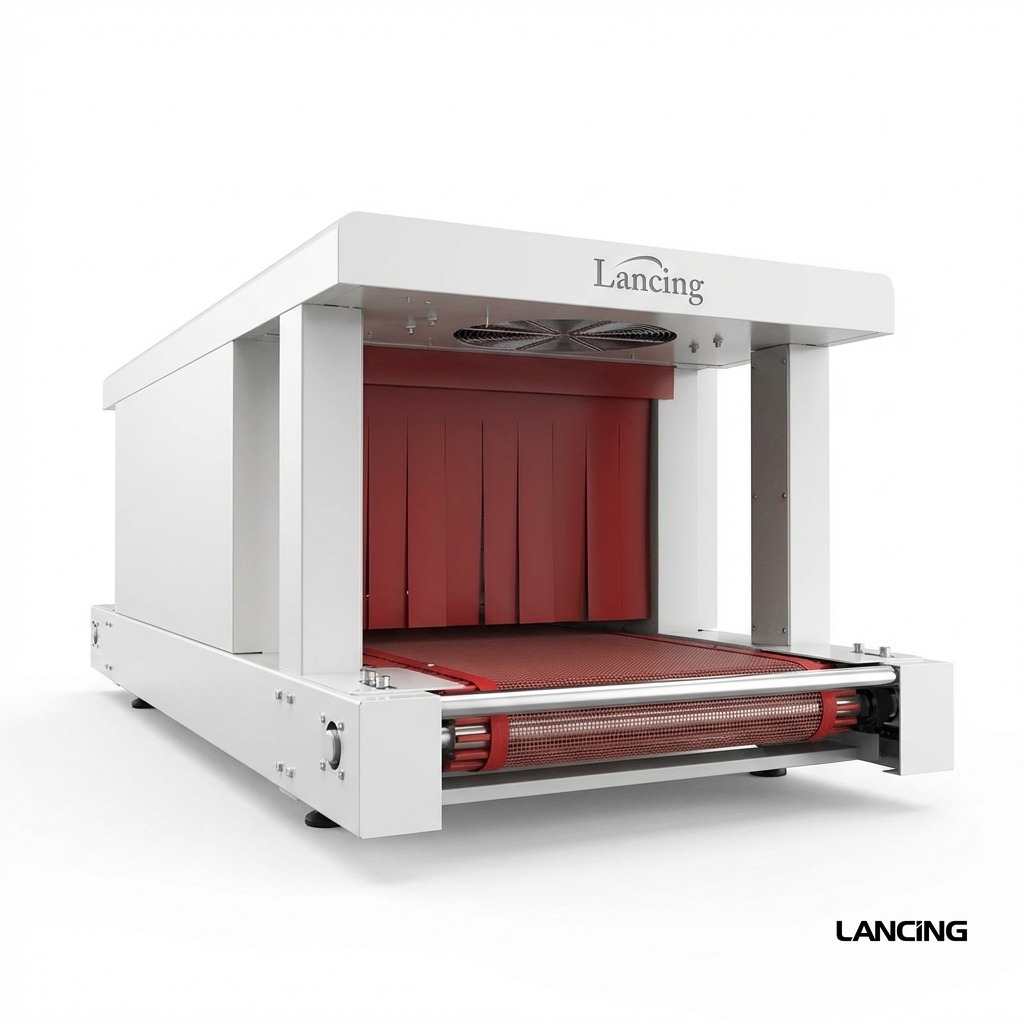

| Tunnel Dimensions | Approx. 1800 × 600 × 400 mm |
| Conveying Speed | 0–15 meters per minute |
| Applicable Shrink Film | PVC / POF / PE |
| Package Dimensions | Approx. 2880 × 930 × 1500 mm |
| Package Weight Approx. | 350 kg |
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Key answers buyers and engineers often need before shortlisting this machine.

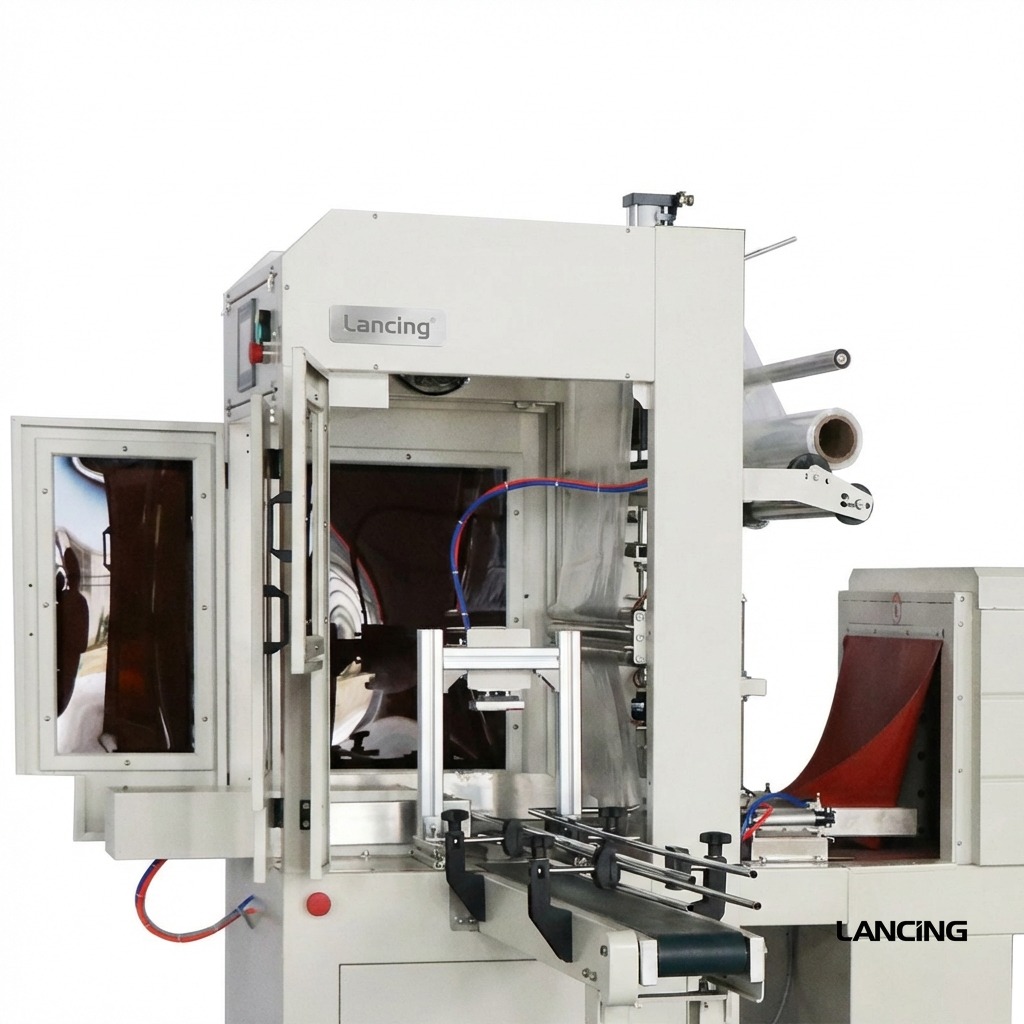

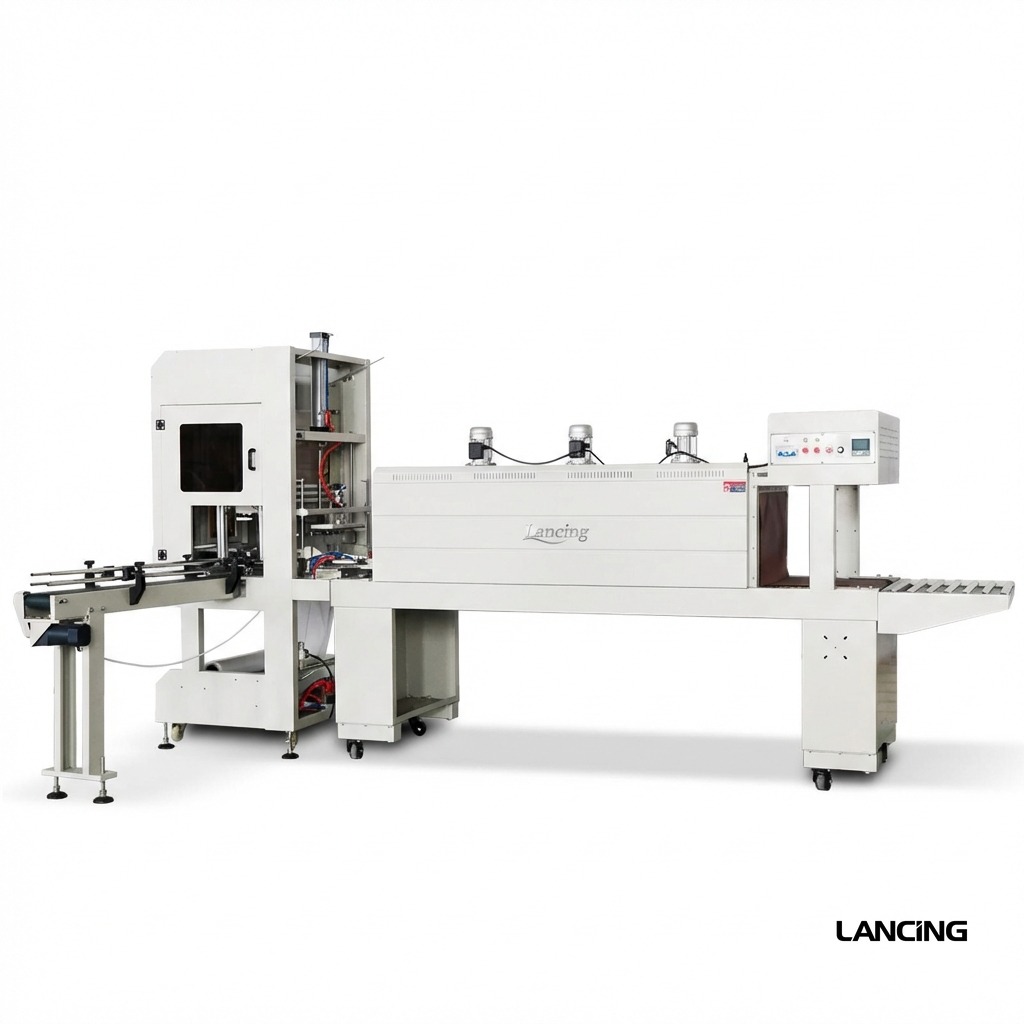

The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line
This page lists output at 0–6 packs per minute. Actual throughput depends on the product, pack format, changeover requirements and the overall line setup.
Voltage: 220V, 50–60Hz; Power: 2 kW; Machine size: 400 × 120 × 330 mm; Footprint / size: 60–120 mm
Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Shrinkwrapping routes depend on product grouping, film choice, heat application and how the finished pack is handled after wrapping. The shortlist is strongest when the wrapping stage is planned in the context of the grouped pack, film specification and downstream handling.
Useful commercial checks before you shortlist or request a final quotation.
Shortlisting lu-spl4 automatic bottle wrapping & shrinking system is usually about more than the base machine price. Buyers normally need to confirm pack presentation, sealing method, film specification and line layout, then check how that scope fits the wider line, labour model and growth plan.
This page currently highlights throughput as 0–6 packs per minute and utilities as 220V, 50–60Hz. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
