Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-SVPP80C |
| Voltage | 110/220V 50-60HZ 2KW |
| Filling pump | Peristaltic pump |
| Max flow rate | 2.4L/min4 |
| Container size | Φ20-100mm H50-300mm |
| Recommend filling range | About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.) |
| Working capacity | About 10-20BPM (based on 100ml water, this depends on filling range and filling material) |
| Size of air compressor connector | OD8mm |
| Machine size | About 2000×800×1800mm |
| Package size | About 2070×800×1740mm |
| Package weight | About 251kg. |
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Key answers buyers and engineers often need before shortlisting this machine.

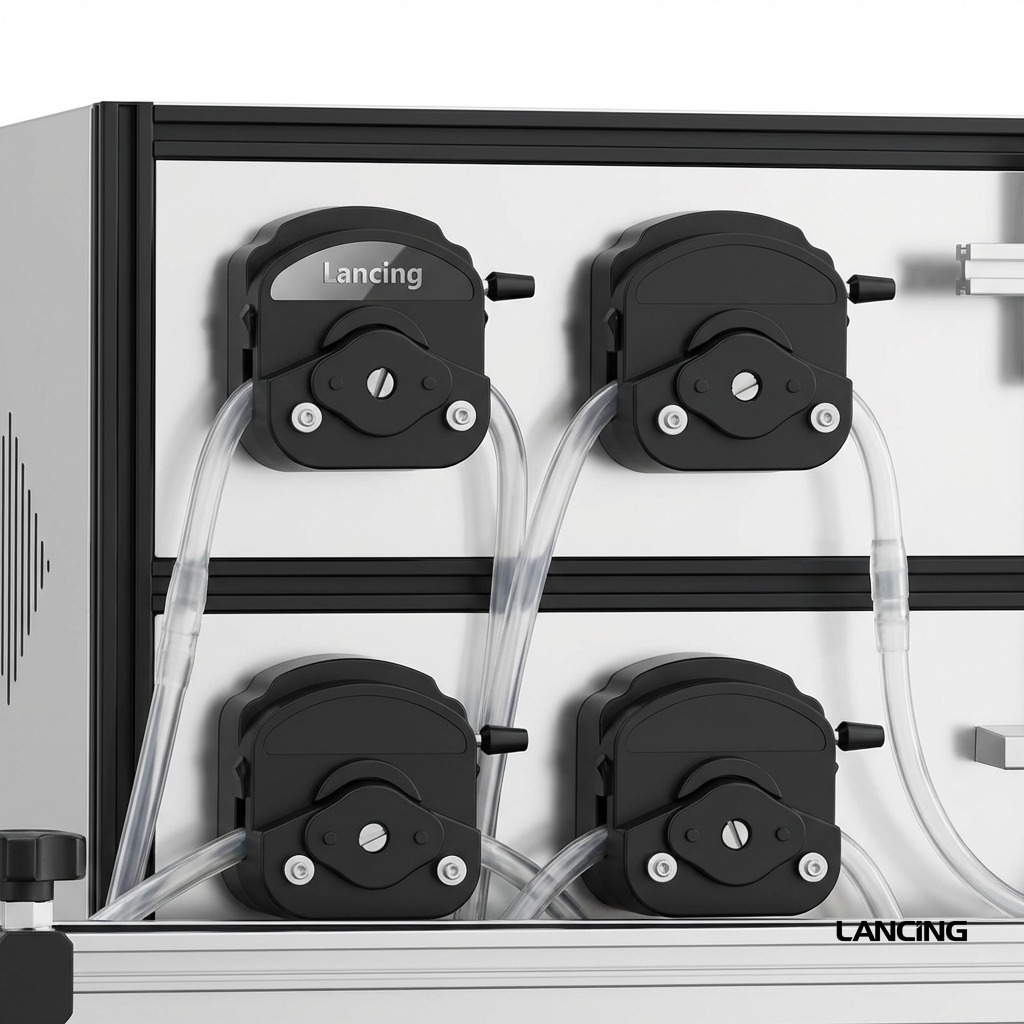

This Lancing UK LU-SVPP80C automatic filling machine is designed for efficiency and precision . Featuring four filling heads , each powered by a peristaltic pump and driven by a servo motor , it ensures accurate and consistent filling volumes
Final throughput depends on the product, container, fill volume and level of automation selected for the project
Voltage: 110/220V 50-60HZ 2KW; Machine size: About 2000×800×1800mm; Air pressure: OD8mm; Footprint / size: Φ20-100mm H50-300mm
Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.
We’ll confirm suitability, options, integration, and realistic throughput for your product.
This machine is normally shortlisted around product behaviour, dose accuracy, fill speed and how the pack will be presented to the next stage of the line. A stronger shortlist usually considers the filler in the context of the container, the closure and the output target rather than as a standalone spec sheet.
Useful commercial checks before you shortlist or request a final quotation.
Shortlisting servo peristaltic pump juice beverage liquid liquid filling machine is usually about more than the base machine price. Buyers normally need to confirm product behaviour, fill volume, dosing method and changeover requirements, then check how that scope fits the wider line, labour model and growth plan.
This page currently highlights throughput as Configurable (confirm during quote) and utilities as 110/220V 50-60HZ 2KW. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.
