LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine

Enquire now Arrange a Demonstration Call Now
Ready to discuss LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call now Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

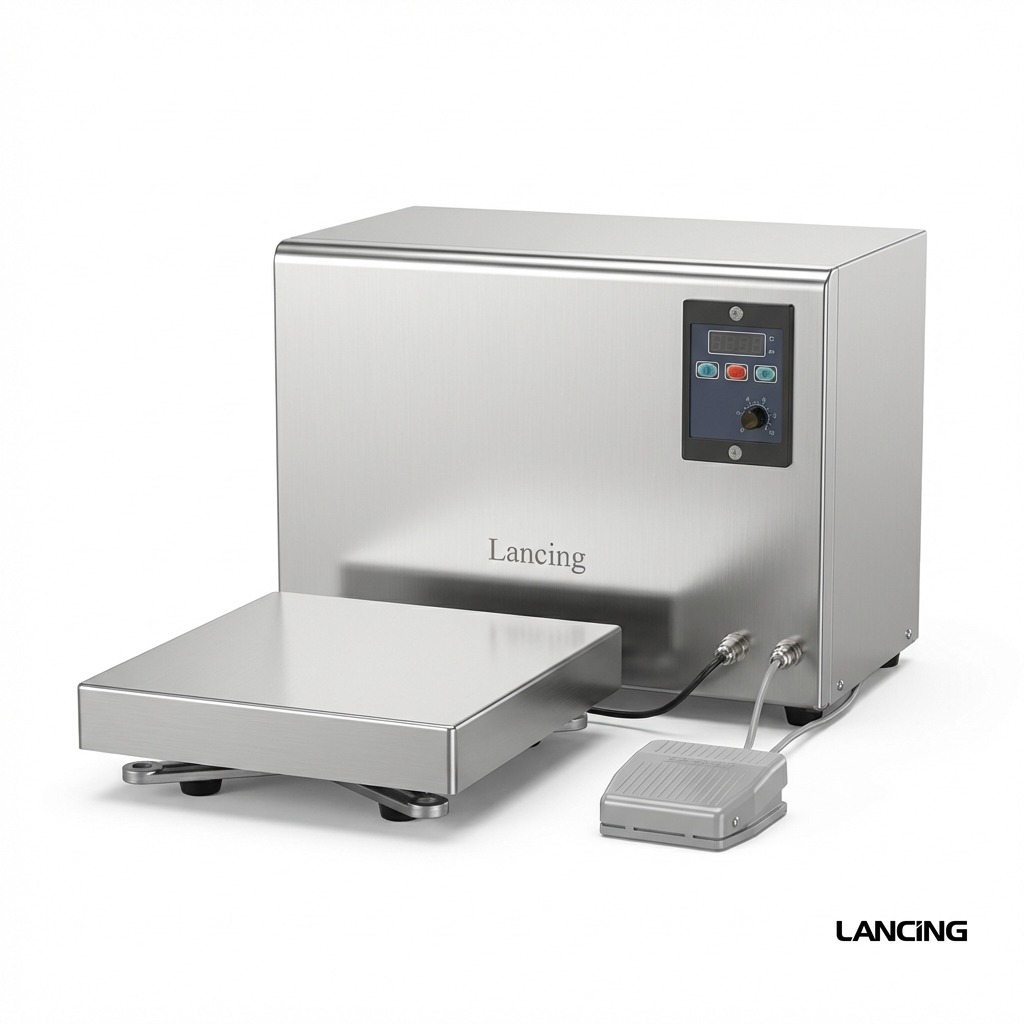

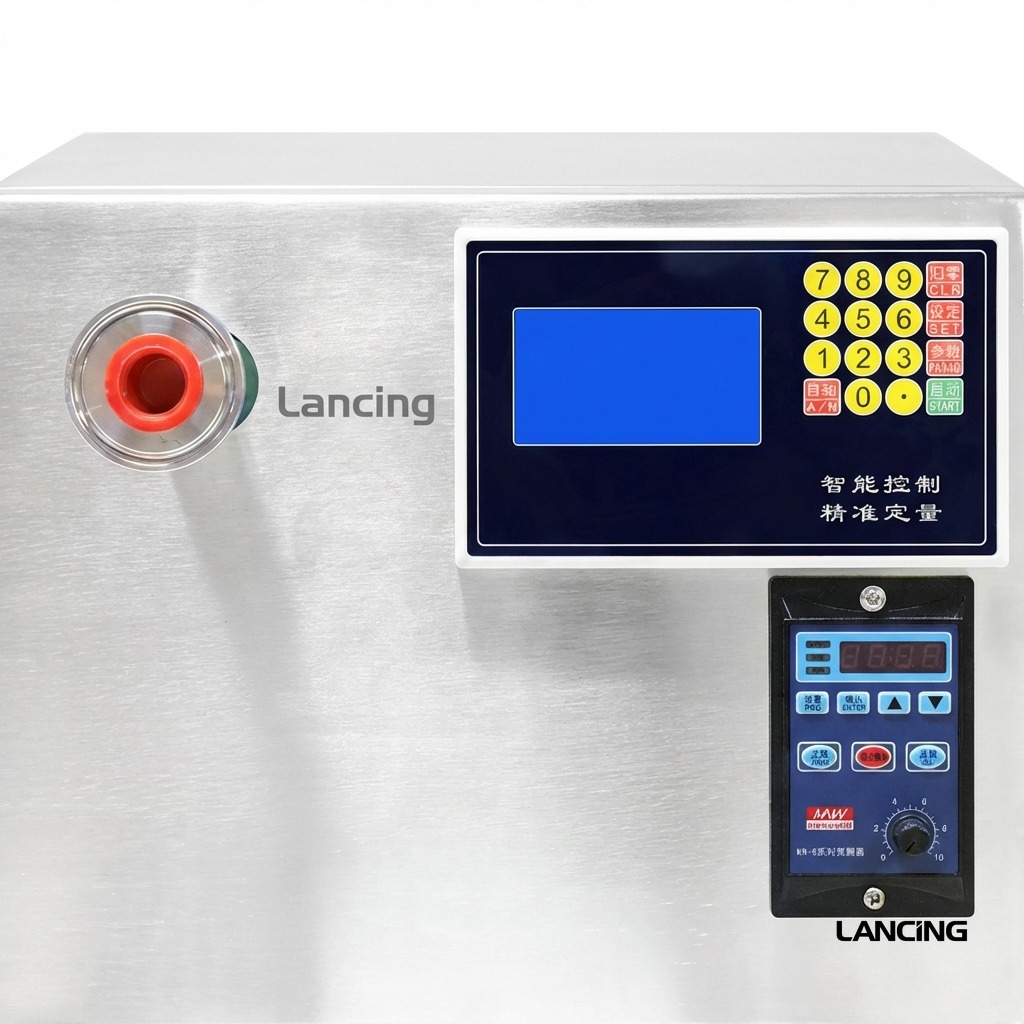

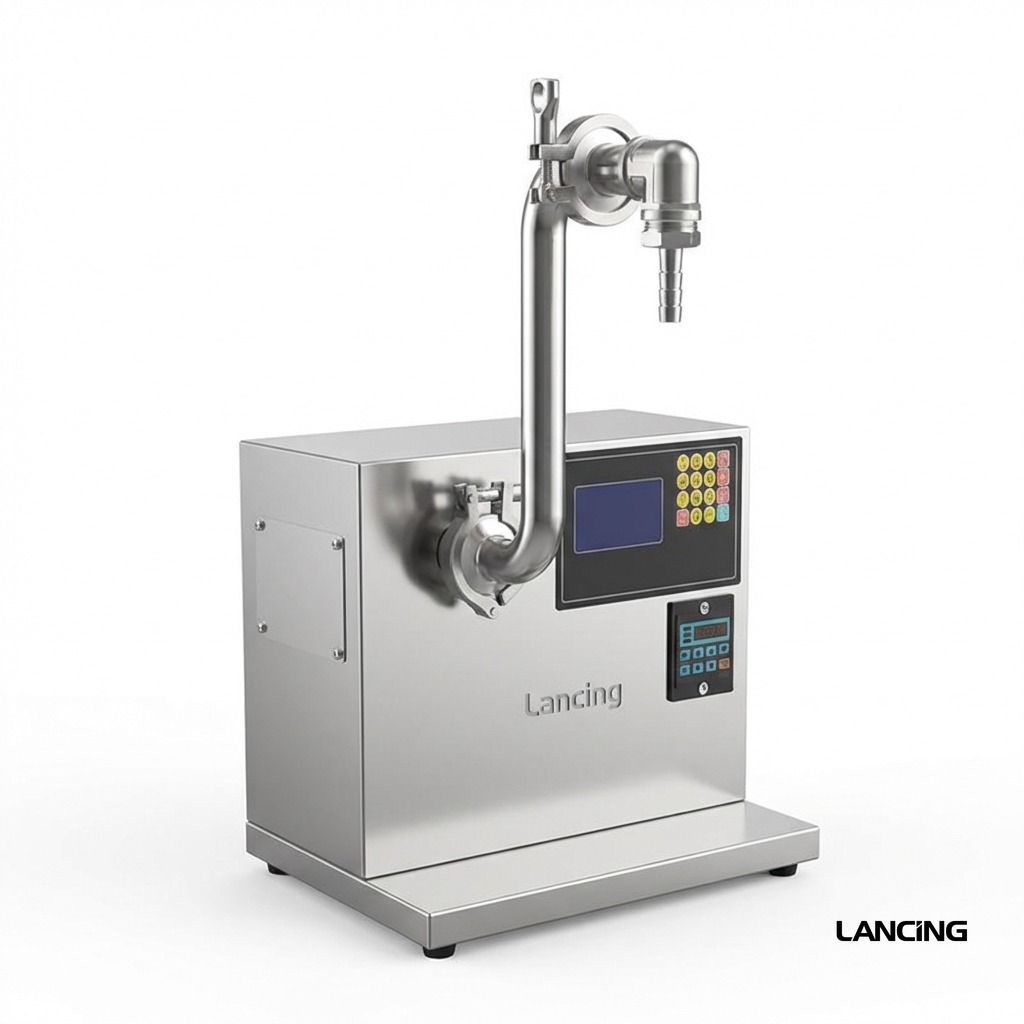

LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine preview
The LU-GPW1 is a precision liquid filling machine designed for high-flow applications. Equipped with a gear pump, it delivers up to 36L/min and supports weight-based filling for enhanced accuracy. Ideal for oils, fuels, chemicals, and food-grade liquids, it features anti-splash control for clean operation. Customization available for food-grade us Gear pumps are commonly used for transferring: Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil) Fuels (e.g., diesel, heavy oil, light oil) Chemical liquids (e.g., resin, paint, additives) Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump Polymers and viscous materials (e.g., glue, bitumen) 👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
Throughput
Configurable (confirm during quote)
Throughput depends on product, format and operator workflow.
Format range
50g-50kg
Configured to your bottle, closure and fill volume.
Utilities
AC110/220V 50-30Hz 200W
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Machine Model LU-GPW1
Power supply AC110/220V 50-30Hz 200W
Maximum flow rate 36L/min
Weighing range 50g-50kg
Filling pump Gear Pump
Max bottle height 370mm
Margin of error 1-5g
Packaging size About 330220360mm
Packaging weight About 16kg

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Power: AC110/220V 50-30Hz 200W
  • Footprint / size: About 330220360mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Key answers buyers and engineers often need before shortlisting this machine.

What is LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine used for?

The LU-GPW1 is a precision liquid filling machine designed for high-flow applications. Equipped with a gear pump, it delivers up to 36L/min and supports weight-based filling for enhanced accuracy

What output can LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine achieve?

Final throughput depends on the product, container, fill volume and level of automation selected for the project

What utilities or site requirements should I plan for?

Voltage: AC110/220V 50-30Hz 200W; Footprint / size: About 330220360mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.

Talk to a specialist

We’ll confirm suitability, options, integration, and realistic throughput for your product.

Call: 01494 623015 Arrange a demonstration

Project planning notes

This machine is normally shortlisted around product behaviour, dose accuracy, fill speed and how the pack will be presented to the next stage of the line. A stronger shortlist usually considers the filler in the context of the container, the closure and the output target rather than as a standalone spec sheet.

  • Confirm how the product behaves during filling, cut-off and changeover.
  • Check whether the container presentation into the filler is stable enough for the required output.
  • Plan how filling performance will affect the capping, sealing or labelling stage that follows.

Related pages

Use these links to compare wider options and prepare a stronger enquiry.

Filling machinery UKBrowse all product categoriesHow to choose a filling machineContact Lancing UKBottle filling, capping & labellingPackaging line integration

Budget, timing and quote planning

Useful commercial checks before you shortlist or request a final quotation.

Shortlisting lu-gpw1 high flow gear pump liquid weighing filling machine is usually about more than the base machine price. Buyers normally need to confirm product behaviour, fill volume, dosing method and changeover requirements, then check how that scope fits the wider line, labour model and growth plan.

This page currently highlights throughput as Configurable (confirm during quote) and utilities as AC110/220V 50-30Hz 200W. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.

  • Confirm the exact product and pack format the quote is based on.
  • Check output assumptions, changeover expectations and operator involvement.
  • List any utilities, footprint, guarding or line-interface constraints on site.
  • Confirm whether FAT, delivery, commissioning, training or spares support are included.
