Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-DTZL500 |
| Power | Approx. 80W |
| Filling Range Approx. | 5–500ml |
| Filling Speed | 20–40 bottles/min (4 nozzles, depends on bottle & liquid) |
| Air Pressure Requirement | 0.4–0.8MPa |
| Applicable Bottle Height | <200mm |
| Filling Nozzle Diameter | 7mm |
| Bottle Mouth Diameter | <22mm |
| Minimum Applicable Bottle Diameter | 35 mm |
| Adjustable Liquid Surface Distance | 5–20mm |
| Suitable Bottle Diameter | <100mm |
| Machine Dimensions (L × W × H) Approx. | 1170 × 690 × 1180mm |
| Machine Weight Approx. | 71kg |
| Package Dimensions (L × W × H) Approx. | 1100 × 580 × 1090mm |
| Package Weight Approx. | 107kg |
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Key answers buyers and engineers often need before shortlisting this machine.

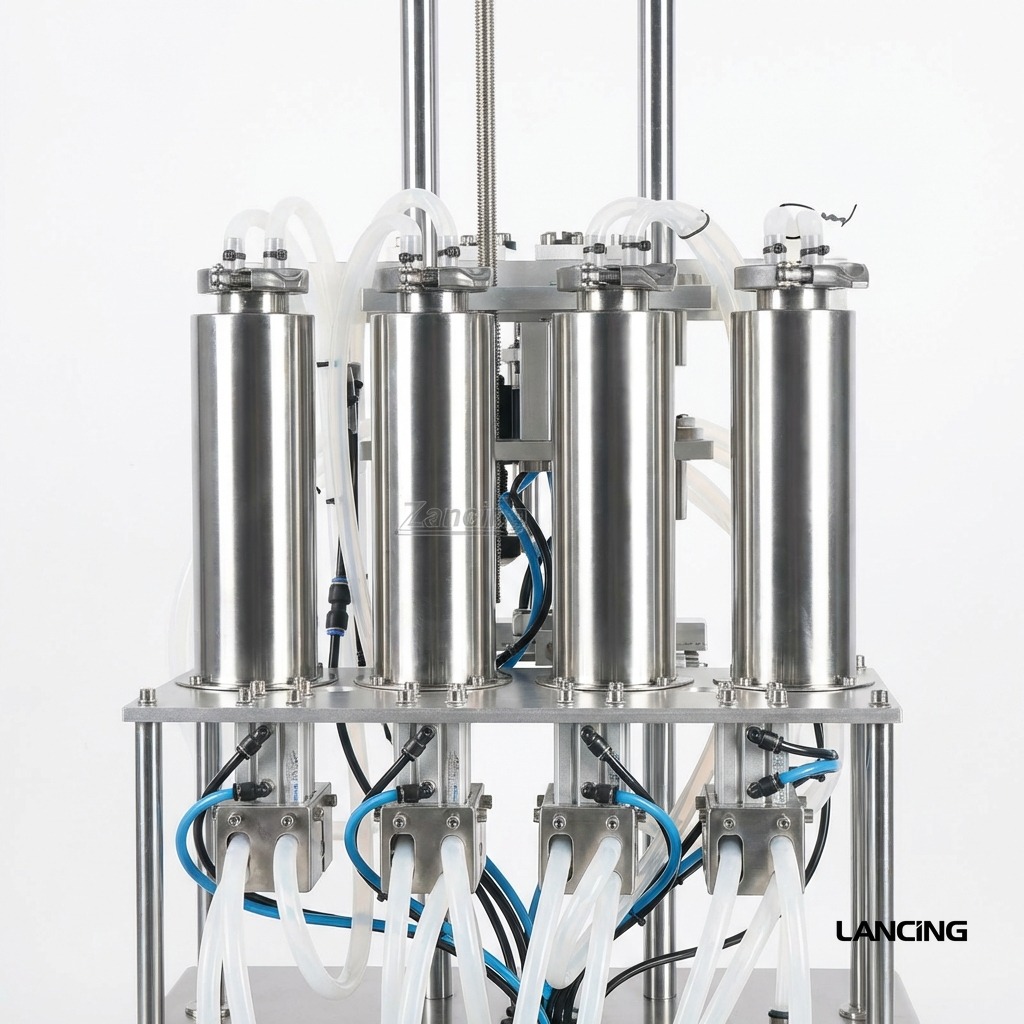

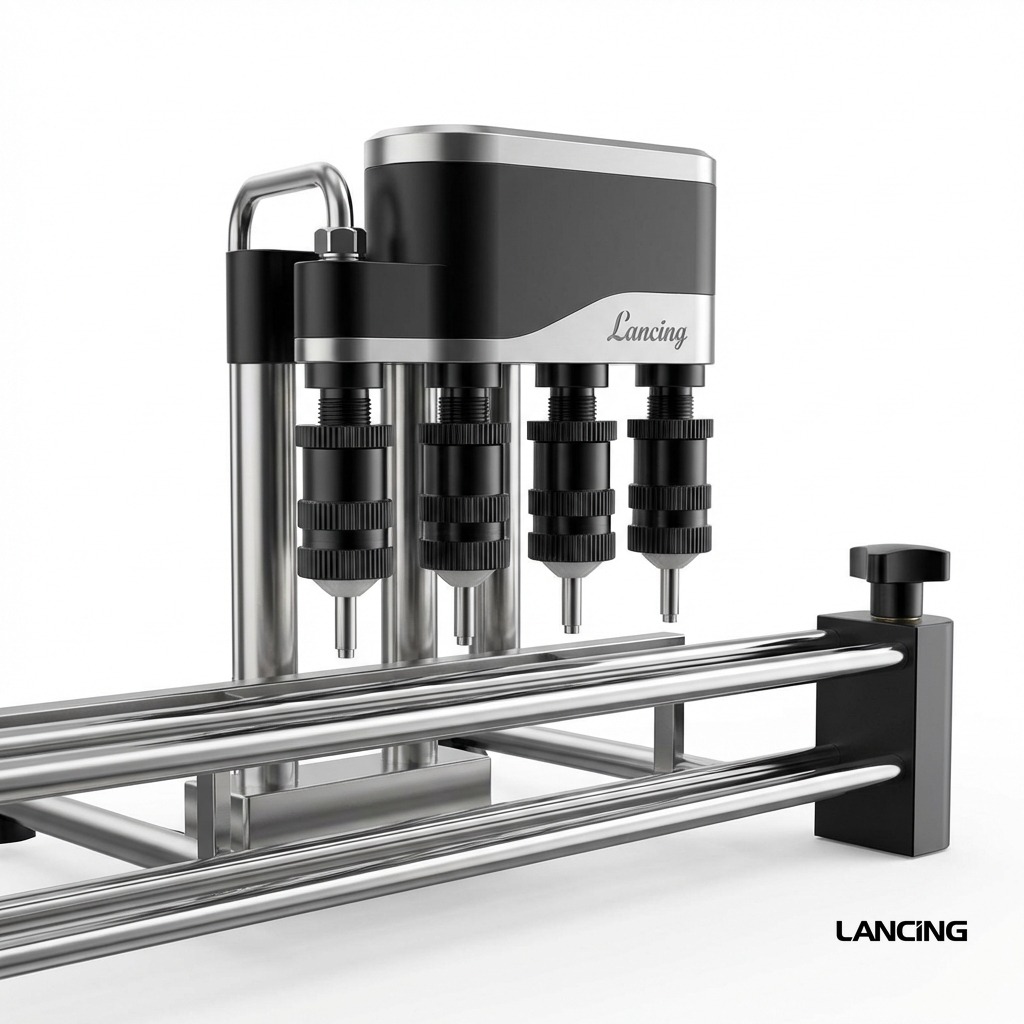

The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, and essential oils. Equipped with four nozzles and adjustable liquid surface control, it ensures consistent fill levels across a wide range of bottle sizes
This page lists output at 20–40 bottles/min (4 nozzles, depends on bottle & liquid). Actual throughput depends on the product, pack format, changeover requirements and the overall line setup.
Power: Approx. 80W; Air pressure: 0.4–0.8MPa; Machine size: 1170 × 690 × 1180mm
Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.
We’ll confirm suitability, options, integration, and realistic throughput for your product.
This machine is normally shortlisted around product behaviour, dose accuracy, fill speed and how the pack will be presented to the next stage of the line. A stronger shortlist usually considers the filler in the context of the container, the closure and the output target rather than as a standalone spec sheet.
Useful commercial checks before you shortlist or request a final quotation.
Shortlisting perfume & essential oil liquid filling machine is usually about more than the base machine price. Buyers normally need to confirm product behaviour, fill volume, dosing method and changeover requirements, then check how that scope fits the wider line, labour model and growth plan.
This page currently highlights throughput as 20–40 bottles/min (4 nozzles, depends on bottle & liquid) and utilities as Approx. 80W. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.
