Pro Range

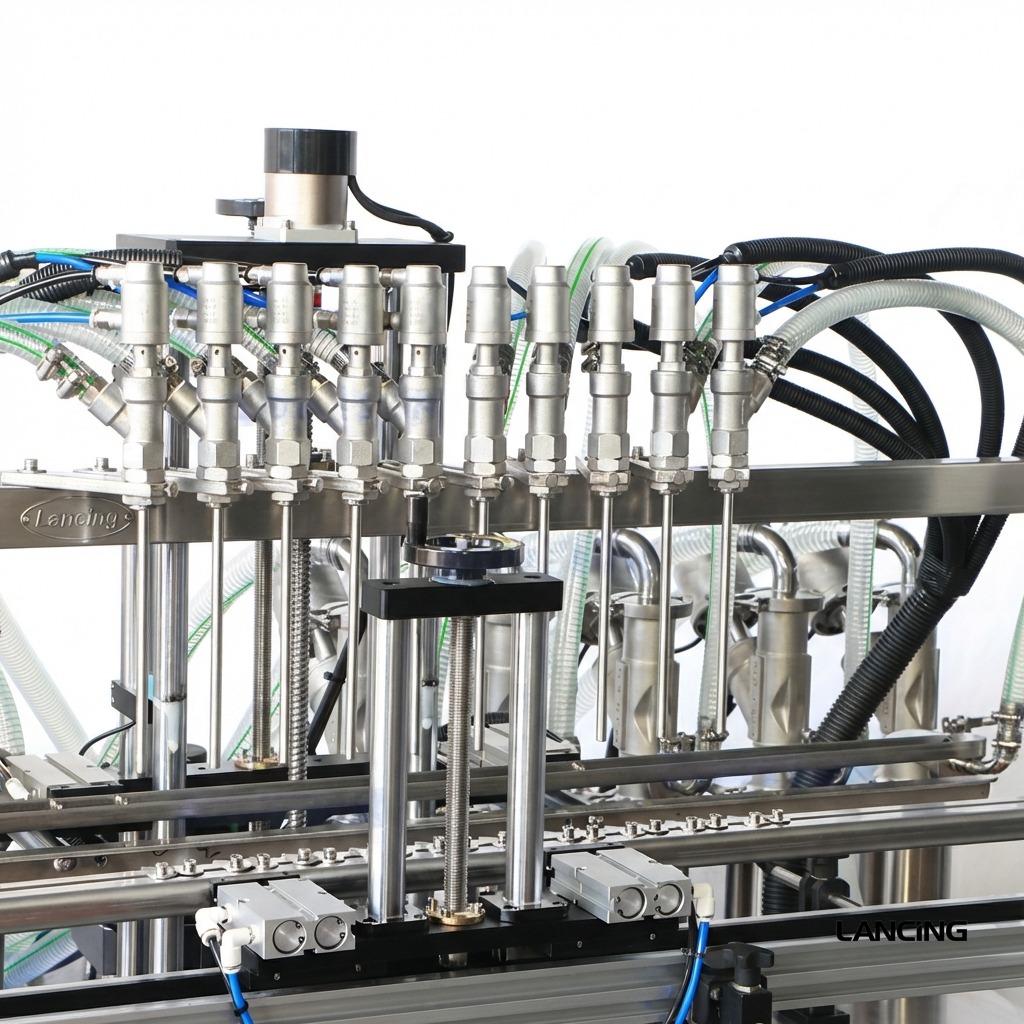

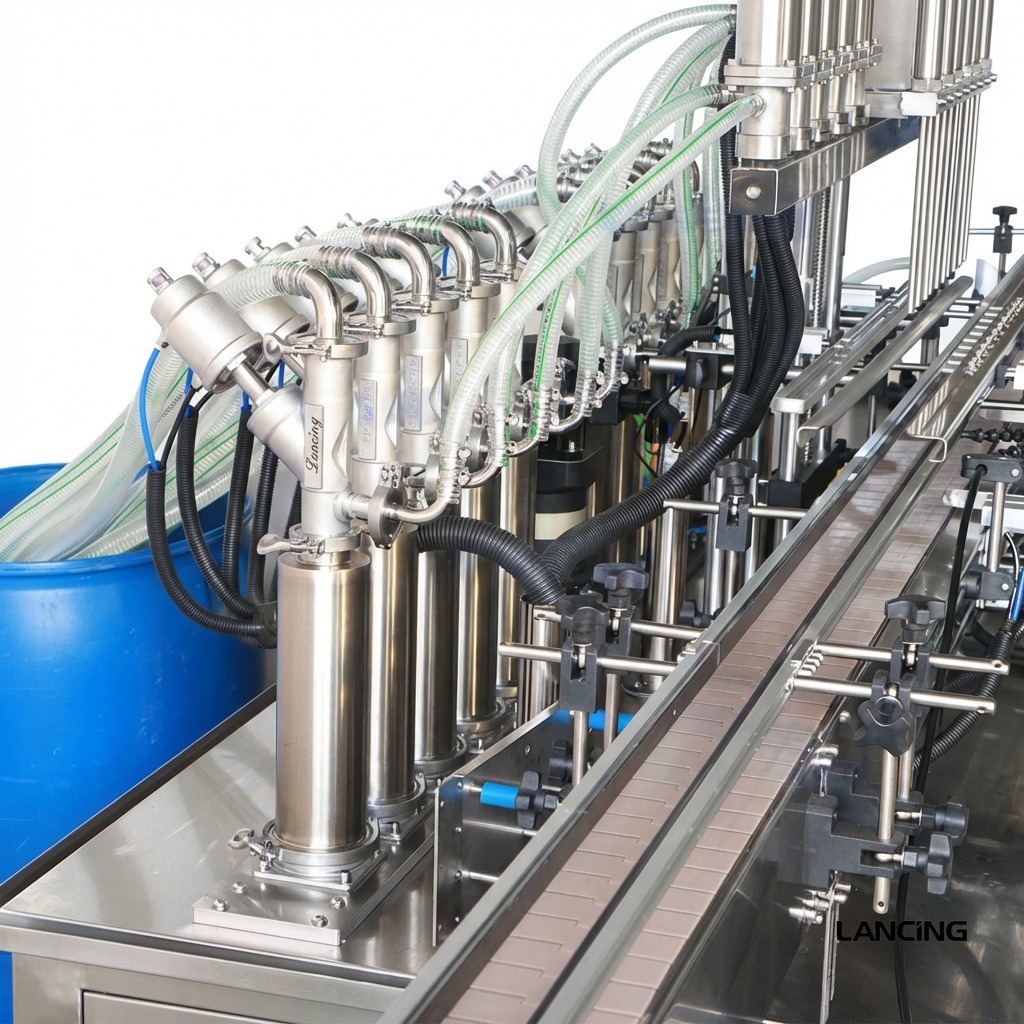

Automatic Servo Piston Filling Machine

Enquire now Arrange a Demonstration Call Now
Ready to discuss Automatic Servo Piston Filling Machine? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call now Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

Automatic Servo Piston Filling Machine preview
Automatic Servo Piston Filling Machine is designed for filling applications where the product behaviour, pack format and dosing method need to work together reliably. The final configuration depends on the material being handled, the fill volume required and the target output for the line
Throughput
Approx. 30–80 bottles/min (depends on filling range and material)
Throughput depends on product, format and operator workflow.
Format range
50–1000 ml (customizable)
Configured to your bottle, closure and fill volume.
Utilities
220V / 110V
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Model LU-SV10HS
Voltage 220V / 110V
Power Consumption 4 kW
Filling Pump Type Servo Piston Pump
Filling Nozzles 10 heads (customizable)
Filling Speed Approx. 30–80 bottles/min (depends on filling range and material)
Filling Range 50–1000 ml (customizable)
Filling Accuracy ±0.5%
Conveyor Dimensions (L × W) 5000 × 114 mm
Air Pressure Requirement 0.5–0.7 MPa
Machine Dimensions (L × W × H) 5000 × 1020 × 1610 mm

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Voltage: 220V / 110V
  • Power: 4 kW
  • Air pressure: 0.5–0.7 MPa
  • Footprint / size: 5000 × 114 mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is Automatic Servo Piston Filling Machine used for?

Automatic Servo Piston Filling Machine 10-Head Paste Filler , sales and related technical services of modern high-tech enterprises. Opens in a new window.

What output can Automatic Servo Piston Filling Machine achieve?

This page lists output at Approx. 30–80 bottles/min (depends on filling range and material). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Voltage: 220V / 110V; Power: 4 kW; Air pressure: 0.5–0.7 MPa

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.

Talk to a specialist

We’ll confirm suitability, options, integration, and realistic throughput for your product.

Call: 01494 623015 Arrange a demonstration

Enquire about this machine

Send a message and we’ll respond with configuration options, pricing guidance and lead times.

Or contact us

Where this machine tends to fit best

This type of filler is usually considered for projects where bottle filling, capping & labelling is the main packaging route and the site needs a more repeatable way to control fill volumes, operator workload and line stability. It is most useful when the product behaviour, the container presentation and the required output are reviewed together.

Next routes

Related planning routes for liquid-filling projects

Use these pages when the main shortlist still depends on filling principle, bottle format, sector fit or wider line planning.

Solution

Liquid filling lines

A route for bottle and jar lines where liquid behaviour shapes the shortlist.

Products

Filling machinery

Compare filling routes around liquid, paste, powder or weight-based dosing.

Liquid and paste projects

How this machine supports a wider liquid filling line

Automatic Servo Piston Filling Machine should usually be compared against the wider project route, not just against similar machine names. Liquid and paste filling projects are normally narrowed down by viscosity, foaming, particulates, hygiene, accuracy, container type and the real output target on site. The strongest shortlist compares the product behaviour and container route first, then matches the filling principle, capping route and downstream handling around that brief.

This machine is most useful when it is reviewed alongside the broader liquid-line planning pages, because the final decision often depends on changeovers, cleaning routine, product path and the way the filled pack moves into capping, sealing or labelling.

  • Confirm how the product behaves during filling, including foaming, dripping, stringing or viscosity change.
  • Check container stability, fill accuracy target, cleaning expectations and operator workflow.
  • Review the downstream capping, sealing or labelling route before locking in the final shortlist.
Filling machineryLiquid filling linesBottle applicationsLiquid filling guideProject planning support

Budget, timing and quote planning

Useful commercial checks before you shortlist or request a final quotation.

Shortlisting automatic servo piston filling machine is usually about more than the base machine price. Buyers normally need to confirm product behaviour, fill volume, dosing method and changeover requirements, then check how that scope fits the wider line, labour model and growth plan.

When comparing this option commercially, ask whether quoted performance is based on your real product and pack, what change parts or feeding equipment are required, what utilities still need confirming and whether installation, FAT, commissioning or aftercare sit inside the same budget.

Filling machine cost guideLead times guideCompare quotationsContact Lancing UK
