Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|
| Machine Model |
LU-FS06 |
| Working Voltage |
110/220V 50-60HZ |
| Packaging Speed |
5-80 bags/minute |
| Roll Film Thickness |
0.05-0.2 mm |
| Roll Film Inner Cylinder Diameter |
¢75mm |
| Maximum Roll Film Diameter |
¢360mm |
| Film Materials |
POPP/CPP, POPP/VMCPP, CPP/PE, etc. |
| Measuring Method |
Electronic Scale/Screw/Measuring Cup/Four-Head Scale/Manual Feeding (optional) |
| Air pressure |
0.6-0.8 Mpa |
| Max Film Width |
520 mm |
| Bag Making Size |
W: 60-250 mm L: 80-350 mm |
| Filling Range |
150-2000 ml |
| Air Consumption |
400 L/min |
| Power Supply |
3.5 KW |
| Dimensions (L×W×H) |
1440×1140×1740 mm |
| Machine Weight |
500 kg |
CAD / dimensions
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Site requirements
- Voltage: 110/220V 50-60HZ
- Power: 3.5 KW
- Air pressure: 0.6-0.8 Mpa
- Air consumption: 400 L/min
- Footprint / size: W: 60-250 mm L: 80-350 mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.
Quick answers
Key answers buyers and engineers often need before shortlisting this machine.
What is Automatic VFFS Auger Powder Filling Machine used for?

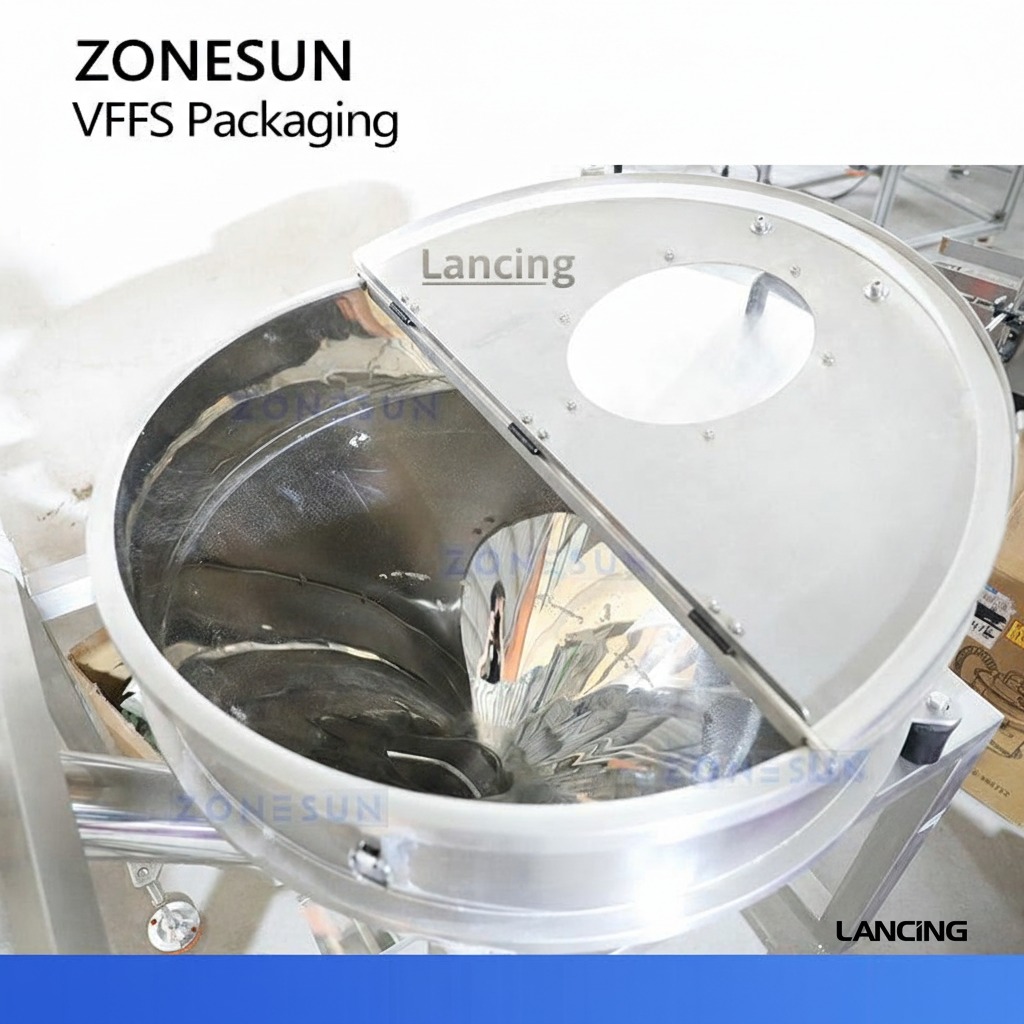

The Lancing UK LU-FS06 is a fully automatic auger filling and vertical form-fill-seal (VFFS) packaging machine specially designed for powder products. It is particularly suitable for efficiently packaging large-volume powders such as laundry detergent, cleaning powder, and bleaching powder.Equipped with a high-performance auger feeding system and a dust collection bucket, the machine ensures high-precision filling and clean operation, effectively controlling dust dispersion
What output can Automatic VFFS Auger Powder Filling Machine achieve?
This page lists output at 5-80 bags/minute. Actual throughput depends on the product, pack format, changeover requirements and the overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50-60HZ; Air pressure: 0.6-0.8 Mpa; Air consumption: 400 L/min; Machine size: 1440×1140×1740 mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product, container or pack style, target output and site constraints to confirm whether this machine is the right fit before supply.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Project planning notes
This machine is normally shortlisted around product behaviour, dose accuracy, fill speed and how the pack will be presented to the next stage of the line. A stronger shortlist usually considers the filler in the context of the container, the closure and the output target rather than as a standalone spec sheet.
- Confirm how the product behaves during filling, cut-off and changeover.
- Check whether the container presentation into the filler is stable enough for the required output.
- Plan how filling performance will affect the capping, sealing or labelling stage that follows.
Budget, timing and quote planning
Useful commercial checks before you shortlist or request a final quotation.
Shortlisting automatic vffs auger powder filling machine is usually about more than the base machine price. Buyers normally need to confirm pack finish, sealing route, presentation needs and line integration, then check how that scope fits the wider line, labour model and growth plan.
This page currently highlights throughput as 5-80 bags/minute and utilities as 110/220V 50-60HZ. If your real pack, product or site conditions differ, the final budget and lead time can change, so it helps to validate those assumptions early.
- Confirm the exact product and pack format the quote is based on.
- Check output assumptions, changeover expectations and operator involvement.
- List any utilities, footprint, guarding or line-interface constraints on site.
- Confirm whether FAT, delivery, commissioning, training or spares support are included.
